    Product:Solar Rail
    No.:250 Watt Solar Panel
    Product multi-angle display:

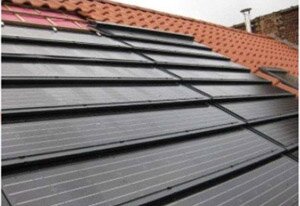

    Black Matt Aluminium PV Frame for BIPV / Building Integrated PV Module with 250 Watts



    Frame Detail:

    1. Name: solar rail

    2. Power: for 250 watts solar module

    3. Colour: black

    4. Material: 6005, 6063, 6061, etc.

    5. Surface Treatment: silver anodizing
    6. Coating Thickness: 10 - 15 um


    Installation:

    This kind of BIPV Frame is made of four parts which interlocking with each other.









    Solar Panel Frame







    1. for solar mounting system

    2. for solar thermal energy

    3. for 100 watt solar panel

    4. for 200 watt solar panel

    5. for 250 watt solar panel

    6. for 300 watt solar panel

    7. for black picture frame

    8. for large picture frames



    Product Pic:

    Black Matt Aluminium PV Frame for BIPV / Building Integrated PV Module with 250 Watts

    Chemical Parameter:

    Alloy

    Chemical Composition

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Zn

    Ti

    Others

    Al(Min)

    6005

    0.6-0.9

    0.35

    0.1

    0.1

    0.4-0.6

    0.1

    0.1

    0.1

    0.15

    rest

    6063

    0.2-0.6

    0.35

    0.1

    0.1

    0.45-0.9

    0.1

    0.1

    0.1

    0.15

    rest

    6061

    0.4-0.8

    0.7

    0.15-0.4

    0.15

    0.8-1.2

    0.04-0.35

    0.25

    0.15

    0.15

    rest















    Mechanical Properties

    Alloy

    Temper

    Thickness

    T.S.

    Y.S

    ELOG.

    Hardness

    σb (MPa)

    σ0.2 (MPa)

    δ%

    HV

    HW

    6005

    T5

    ≥ 0.8

    ≥260

    ≥240

    ≥10

    ≥85

    ≥15



    6063



    T4

    ≥ 0.8

    ≥130

    ≥65

    ≥12

    -

    -

    T5

    ≥ 0.8

    ≥160

    ≥110

    ≥8

    ≥58

    ≥8

    T6

    ≥ 0.8

    ≥205

    ≥180

    ≥8

    ≥65

    ≥10

    6061

    T4

    ≥ 0.8

    ≥180

    ≥110

    ≥16

    ≥65

    ≥10

    T6

    ≥ 0.8

    ≥265

    ≥245

    ≥8

    ≥85

    ≥15.5



    Production Line Machinery:

    Machine Name

    Brand & Model No.

    QTY

    Years Used

    Condition

    Extruding Machine

    Taiwan Yichang

    14

    25

    Acceptable

    Extruding Machine

    Taiyuan Zhonggong

    1

    20

    Acceptable

    Anodizing Line

    Taiwan Worldclean

    2

    20

    Acceptable

    Electrophoresis Line

    Taiwan Worldclean

    2

    15

    Acceptable

    Powder Coating Line

    Taiwan Worldclean

    1

    15

    Acceptable

    PVDF Coating Line

    Taiwan Worldclean

    1

    15

    Acceptable

    Wood Grain Line

    Taiwan Worldclean

    1

    5

    Acceptable

    Deep Processing Line

    Solar Panel Frame

    18

    15

    Acceptable

    Packaging Line

    No Information

    2

    15

    Acceptable



























    Finish Processing Machinery:

    Machine Name

    Brand & Model No.

    QTY

    Years Used

    Condition

    CNC Machining Center

    No Information

    1

    5

    Acceptable

    Bench Drilling Machine

    Zhejiang Xiling

    8

    10

    Acceptable

    Punching Machine

    Wuxi Lanling

    13

    10

    Acceptable

    Special Punching Machine

    Wuxi Lanling

    4

    10

    Acceptable

    Ends Milling Machine

    Wuxi Lanling

    3

    10

    Acceptable

    Digital Display Double Head Cutting Machine

    Wegoma

    13

    10

    Acceptable

    Open Back Inclinable Press

    Yangli Group

    34

    10

    Acceptable

    Plate Bender

    Yangli Group

    15

    8
