    Product
    Product:250 Watts PV Modules Al Frame
    No.:40*35*4.6 mm

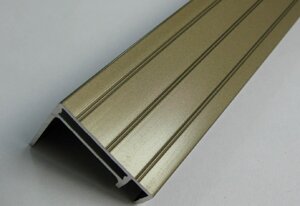

    Product multi-angle display:
    40 X 35 MM Solar Mounting System Frame 1640 X 992 MM for 60 Mono Cells 250 Watts PV Modules

    Frame Info:

    Brand Name: SAM
    Certification: TUV ,CE ,JET
    Place of Origin: China
    MOQ: 1 ton
    Payment Terms: T/T ,L/C
    Supply Ability: 3000tons each month
    Delivery Time: 25days
    Packaging Details: Packed with EP ,Carton ,Pallet or wooden case
    Material: Aluminum Alloy
    Temper: T5
    Color: Silver
    Application: Ground
    Size: 40*35
    Surface: Anodized


    Usage:

    Solar Panel Frame

    1. for solar mounting system

    2. for solar thermal energy

    3. for 100 watt solar panel

    4. for 200 watt solar panel

    5. for 250 watt solar panel

    6. for 300 watt solar panel

    7. for black picture frame

    8. for large picture frames











    Chemical Compositions:

    Alloy

    Chemical Composition

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Zn

    Ti

    Others

    Al(Min)

    6005

    0.6-0.9

    0.35

    0.1

    0.1

    0.4-0.6

    0.1

    0.1

    0.1

    0.15

    rest

    6063

    0.2-0.6

    0.35

    0.1

    0.1

    0.45-0.9

    0.1

    0.1

    0.1

    0.15

    rest

    6061

    0.4-0.8

    0.7

    0.15-0.4

    0.15

    0.8-1.2

    0.04-0.35

    0.25

    0.15

    0.15

    rest








    Mechanical Properties:

    Alloy

    Temper

    Thickness

    T.S.

    Y.S

    ELOG.

    Hardness

    σb (MPa)

    σ0.2 (MPa)

    δ%

    HV

    HW

    6005

    T5

    ≥ 0.8

    ≥260

    ≥240

    ≥10

    ≥85

    ≥15


    6063


    T4

    ≥ 0.8

    ≥130

    ≥65

    ≥12

    -

    -

    T5

    ≥ 0.8

    ≥160

    ≥110

    ≥8

    ≥58

    ≥8

    T6

    ≥ 0.8

    ≥205

    ≥180

    ≥8

    ≥65

    ≥10

    6061

    T4

    ≥ 0.8

    ≥180

    ≥110

    ≥16

    ≥65

    ≥10

    T6

    ≥ 0.8

    ≥265

    ≥245

    ≥8

    ≥85

    ≥15.5


    Frame Drawing:
    40 X 35 MM Solar Mounting System Frame 1640 X 992 MM for 60 Mono Cells 250 Watts PV Modules
    Our Unique Advantage:

    1. Rich Industry Experiences:
    We have over 30 years experience in aluminum extrusion production, and over 10 years in solar panel frame,150 kinds of frame have been developed for a variety of use.

    2. Good Capacity:
    Equipped with 15 automatic extrusion lines,our production capacity above 3000T per month

    3. Quality Management and Control System:
    Having passed the ISO/TS 1694 and SGS certifications, our quality management and control team ensures that every product is manufactured to the highest specifications.

    4. One-stop Service:
    From the inspection of the raw material, extrusion, aging oven treatment, sandblasting, anodizing, film coating, further processing center, packaging; Sam Solar can take care of all of your aluminum extrusion product needs.
